Professional Graphic Tools

Frequently Asked Questions





  1. ACTIVATION
  2. Common
  3. Able Graphic Manager
  4. Able Photo SlideShow
  5. Able Fax Tif View

See "How to ..." also.


ACTIVATION

1) Start the program and insert your serial number or Help | Activation.
 You can also use "activation.exe" file for that.

2) Please activate the program under USER profile if the program will be used under USER profile. After activation under ADMIN profile, program will not work under USER profile.

3) If there are problems with automatic activation:

a) Run the program, start the activation [Help | About or activation.exe], select "Manual" activation type; you will be provided with hardware code.

b) Go here: https://proactive.star-force.com/2.0/activate.php and type in your serial number and hardware code from a); in case of success you will be displayed an activation code.

c) Go back to protection system window, press "Next", enter the activation key from b) and press "Activate".

More information about activation, deactivation and reactivation


TRANSFER of the program

Q: I'd like to transfer the license to my new notebook, how may I do it?

Q: I have setup a new computer and want to transfer my "Able Fax Tif View" program.
What is the proper process to do this and retain the my number of activations?

Q: I just recently updated my PC and purchased a new Dell.
The question I have is whether I can transfer the software with your
help to my new PC or do I have to purchase it again?

Q: I am getting a new computer.  How do I move 'Able Fax Tif View' to my
new computer?

A:
1) Deactivate the program from your "OLD" computer.
2) Install and activate the program on your "NEW" computer.

More information about activation, deactivation and reactivation




How to use coupon codes

/how_to_use_coupon_code.htm


PAYMENT

How to place a purchase order ...

How to use a bank wire transfer as a payment method (invoice) ...


COMMON

Q:
I though that I would receive the latest upgrade with the purchase of the Fax Tif View. I am using your program since purchased with good time savings. I am looking forward to the latest.

A:
Registered users can visit Upgrade Page (www.graphicregion.com/upgrade.htm) on our site and download the latest version of their purchase.

As a registered customer, you are entitled to free upgrades during one year from the date of purchase. It means that for one year you can download and install the latest versions of the software from our site, and the license file(s) that you received from us when you purchased the software will work with the latest product version.

If you purchased the software more than one year ago, you are no longer entitled to free upgrade; however, you can purchase an upgrade to the latest version at a discounted price (50 - see the table below), and this upgrade will allow you to have free upgrades for another year.

If you don't want to purchase an upgrade, you can use the program forever;
it will never expire, but you won't be able to use the latest version.


Q:
I have not received my personal license that I paid for. I have waited and no email about      unlocking or registering the software. I don't understand what I should do to register.

A
:
If you have received a file it is the full-function version and registration number is not required.  Only unzip attached zip-file and run setup.exe. Enjoy.


Q:
What programming language and database is this program written in? I would not want to load any dll's or runtimes that are not well behaved in my system.

A:
The program is written on C++, consists of one EXE-file and does not require any additional  modules and DLLs.


Q:
I purchased the Program this evening. Apparently my purchase was confirmed, but I still have not received any information about upgrading my demo copy of the software to a fully registered copy.

A:
The information about downloading the full version of program is in the post order message.


Q:
I made a mistake of uninstalling your software. I tried downloading but coundn't. Please help me!!!

A:
Go on www.graphicregion.com/download.htm page.
Type your email address in the necessary field.
Receive in your email box the link, password and login.
Go to link and enter the password and login in that case in which they were sent.
In appeared dialogue window press button "Save" and choose a place on a disk where it is necessary to save the program.
Wait the endings of loading.


Q:
When I purchase software I like to have the software on disks or a CD in case a virus or PC crash ruins my copy on my PC...

A:
You may order the program on CD. CD-ROM with full version (via Air Mail) US $9.95.
Disks will be shipped from Canada.


Q:
We are looking at purchasing a product for 20-25 users. This client is a government agency and will balk at paying $49.95 per user. Please supply your "runtime" pricing for users.

A:
We have the Site License ($499.95).
This license allows to use a program on an unlimited number of computers within the same company.
www.graphicregion.com/purchase.htm


ABLE GRAPHIC MANAGER

Q:
In addition to converting to .jpg, I'd also like to reduce filesize for web use by either reducing number of colors and/or image quality. Can Able do this? If so, in batch mode as well?

A:
Our program allows at saving of one file and in batch mode to choose parameters of a file.
"Advanced" button allow to display and modify advanced specific file format parameters.

File->Save->Advanced (Single mode) or File->Batch process->Advanced (Batch mode)


Q:
I asked to enlarge to 8.5x14 but it printed the page in 8.5x11 since this is the default format of the printer. It should have printed just the 8.5x11 part visible of a 8.5x14 page in this case?

A:
The program may print any size and any ratio of the sides. At a print from a dialogue window  "Print" use options Image Size = Special Size, type the necessary width and height and      check-box "Maintain Aspect Ratio" should be not checked.

use this keys at start from a command line

graphman.exe test.tif /sa=prn /prn_is=3 /prn_pp=4 /prn_mu=1 /prn_ip=8.5-14 /prn_ar=0


Q:
I am trying to convert files from TIF to JPG for use in a Trial Presentation Program called     visionary. Can I get a tutorial for using Able Graphic Manager for that purpose?
I will be happy to pay for some tutoring.

A:
Start the program. File-> Open-> Select existing file. In the "Option" dialog box set necessary parameters. File-> Save-> Select name for new file.


Q:
Text Problem: In the electrical drawings we use a lot text as this example >> ' 6 mm² '
The Graphic Manager give only a correct view with the 'Terminal' text parameter.
Because all the other give something like ' 6mmy' (VoloView also) With 'Terminal' text is the quality is very low.
Is there a solution to solve my problems or can you give me directives for the people how create the dxf files by there drawing software 'Eplan'

A:
For correct display of the text with the superscript "2" use UNICODE symbol \U+00B2
(superscript "3" -> \U+00B3).
For example, " 6 mm\U+00B2 ". Thus correctly it should be displayed with any font.


Q:
I'm trying to open up various airplane plans but they open up all messed up.
I open them up with the "default" settings in your program.
I guess I need to change that, but honestly I don't know what to do.
I will attach an example so maybe you can help me out.

A:
You need to increase the size of view area. Options - > Common - > Size = Use Width,
set Width = ... pixels (or more)


Q:
I have a new question: Could we have a way to rotate the drawing when converting from command line?

A:
Command line parameter: /rot=angle


Q:
Were you able to get the application to not show in taskbar when running from command      line yet?

A:
Command line parameter: /notbar


Q:
Can you make a parameter that will allow us to name the output file on single conversions?

A:
Command line parameter: /sa=test.jpg


Q:
Can you specify the printer on the command line option?

A:
Parameter: /printer="PrinterName"     For example: /printer="HP LaserJet 4p"


Q:
I find Able Graphic Manager is very useful to me. Thank you for earlier help.
Question: how do I use 'crop'? I see its there in 'edit', but how to use?

A:
Use the "Select mode" toolbar button (or the menu buttons - View | Select mode )
Select requested region and use the menu buttons
Edit | Crop


Q:
i want to print a JPG image (mypic.jpg) on "HP Laserjet 5", fit to the page, centered, with no human interaction and as little screen display as possible...

A:
command line
graphman.exe mypic.jpg /sa=prn /printer="HP Laserjet 5" /prn_is=2 /prn_pp=4 /prn_ar=1 /notbar


Q:
I am a software developer for a company looking for a tool to automate the conversion of DXF files to JPG format.

A
:
You can use command line parameters.
See Help File in the program or
www.graphicregion.com/dxf_graphic_convert/index.htm


Q:
Your batch print when I add folders sorts by the file name field. I need to sort and print by the directory field first. How do I do that?

A:
There is an opportunity to sort by a filename or a directory.
For this purpose it is necessary to press heading of the appropriate column.


Q:
I have a trial version and am trying to asertain if this product will do what I need (i.e. convert selected drawings to JPG so that I can access them from within a database). In order to achieve this I need to call the tool via the command line and this is now working well. However there is an issue if the source file or the target directory contain spaces within their file or pathnames. The program appears to run without any error messages but does not produce the required output file. This also happens when I run the command line directly by typing it within a shell. Can you please let me know a workaround as there is no way that we can guarantee that we will not meet these conditions (ie spaces in pathnames) within a live systems.

A:
Try to use commas.
/tardir="target directory contain spaces"


Q:
Many thanks for that, unfortunately I have to build the command line within aprogramming language (VB) and do not beliver I will be able to use double quotes (") I have tried single quotes (') but to no avail. I will try and see if I can delimit the double quotes to include them in
 the string. Do you have any other ideas in case this doesn't work

A:
Use the /quote parameter if you can use the single quote only.
for example,
graphman.exe 'D:\TEMP\new new\160248.tif' /quote


Q:
I am looking for a program that will batch print .tif files. Usually we are printing 30 - 220 different files in a batch. These files are architectural drawings that need to be printed in landscape mode on 11 x 17 media.  That is fit to page on 11 x 17.

A:
You can use Able Graphic Manager:
www.graphicregion.com/graphman.zip

File |Batch process... |Add Files... or Add Folders ...
Save as type = PRN (Printer)
Click "Advanced ..."
Choose the printer and set necessary parameters of a printing.
Click "Start"

You can use Able Photo SlideShow:
www.graphicregion.com/photoslideshow.zip

Browse | Select folder with files | Print | Print all images in the
current folder.


Q:
I could not create (Save) a monochrome file

A:
1) Image | Color mode | Convert to BW
or
2) File | Save | Advanced | Mode


Q:
I could not zoom a DXF file to details.

A:
use Tools | Options | DXF | Size increase instead zoomind = on | OK
and try to use zooming again


Q:
it didn't print multiple thumbnails

A:
Use for it 'Able Photo SlideShow' program.
www.graphicregion.com/photoslideshow.zip

See the Browse button - Select the folder - Print
"What would you like to print" item is "print thumbnail for all images in the current folder"


Q:
I was unable to crop my picture.

A:
File | Open
View | Select mode
... select area for crop ...
Edit | Crop


Q:
Did not work with *.jpg I needed to open.

A:
Program allows to open JPG files.
File | Open

You can associate the program with the JPG extension
File | Image associations


ABLE PHOTO SLIDESHOW

Q:
I downloaded your software and am interested in making a purchase however I have a hard time figuring out the transition options. I can preview them in the options palette but how do I make my selection concerning transition speed

A:
Use the Options button
SlideShow tab | Transition effects | Duration


Q:
How do you make the sound file continue until you wish to change the music to another sound file?

A:
Options | Appearance | Sound Playback ... | Add ...
If you have chosen one file with music it will repeat many times while you do not choose another.


Q:
I am trying this out. Easy to create the slideshow. But i can't figure out how to send it

A:
You can create the executable slideshow and send it by email.
Use the "Project manager" button on toolbar.
Add files and press the "Make EXE" button.

Q:
or how to have someone view on web.

A:
Project manager | Add files | Web Gallery


Q:
How do I synchronize the start of the show and the music ?

A:
Use the "Synchronize slides with audio" parameter from the Options (SlideShow tab).


Q:
I could not make the photos smaller than full screen

A:
Options | Appearance | Scaling Options

Q:
and then randomly display them at different locations.

A:
Options | Sequence | Random


Q:
I couldn't add song to it.

A:
Options | Appearance | Sounds | Sound Playback... | Add...


Q:
It wouldn't pick up my photos and allow me to modify the order to create a slideshow.

A:
For change the order of a slideshow
use
Project manager | Add files | Up or Down buttons


Q:
I was looking for a screensaver

A:
Project Manager | Make exe, scr
copy this file into "windows" folder


Q:
i need quick caption entry for a larger number of images.

A:
use "Description manager"


Q:
Is a visible background the only mode of operation, or can a blank background be used?

A:
You can select any image or color for background.
Options | Appearance | Background


Q:
My images were like 4K x 4K tif files and the slideshow would not resize them to my screen resolution...

A:
Options | Appearance | Reduce large images to fit (Enlarge small images to fit) | OK


Q:
I could not see an easy way to put an individual narration on each photo.

A:
Click the "Description manager" button. It allows to add description to each photo.
(Select photo - type the description)

Options dialog | Caption tab | Show caption = on | Selection = Description


Q:
I am trying to find an application that will display a slideshow of images in a folder.
The difference being that I want the folder monitored for new images and include them in the slideshow as and when they arrive.

A:
Use the Open button > Select the folder > check the Folder monitoring
checkbox.

Use the DownArrow button for Start-Stop operation and RightArrow for manual selection.


Q:
Could not delete pictures i did not want in slideshow

A:
Use the "project manager" button.
You can to add or remove any pictures in slideshow.


Q:
Needs to run in full screen mode.

A:
Use the Full Screen button on the toolbar.


Q:
It didn't work to rotate the pictures.

A:
Use the Rotate Buttons on toolbar.


Q:
I wanted to create a slideshow that I could put within a webpage that already exists.

A:
Use the Project manager button | Add files | Web Gallery


Q:
I am looking for a program that will allow me to quickly print thumbnails of my pictures I want to print say 20 pics on an 8.5X11 page to help me catalogue and deal with all my pictures, (several hundred by now. I want a print out similar to the printouts you get when you have 35 mm film developed and get a Cd with all the pics on it.

A:
Use Menu
Browse | Print | Print Thubmnails for all images in the current folder


Q:
I need to insert a caption on the picture

A:
Use the "Description manager" button on toolbar.


Q:
When it is running in full-screen mode is there a way to remove the message bar at the bottom
 that tells you how to stop/start slideshow and exit full screen.

A:
Options | Appearance | Show the status bar


Q:
I need a program that will generate code for a slideshow that I could cut and paste into a web page.

A:
Project manager button | Web Gallery | WebStyle = SlideShow


Q:
Is there a way to add an image to the directory that the slideshow is drawing from and that photo will be automatically part of the slideshow...without having to stop the current slideshow and start over again? So, if users are uploading images constantly, all those new images are automatically part of the slideshow.

A:
Press the "Open" button, select requested Folder, mark out the "Folder monitoring" check box. OK


Q:
I bought the program able photo slideshow to demonstrate photos from a folder to the screen. I need a bat file to automatically launch a slideshow in full screen mode.

A:
Use the following command line:

"C:\Program Files (x86)\AblePhotoSlideShow\ablephotoslideshow.exe" "inputfilename" /fullscr /start

inputfilename - path to your folder

or use the short path to the folder

C:\PROGRA~1\AblePhotoSlideShow\ablephotoslideshow.exe


Q:
How do i remove the grey info line on the bottom of the slideshow?

A:
Options | Appearance | Show the status bar = OFF

Q:
Thank you, that worked great. Another question, is there a way to have the software expand the picture to fill the entire screen? Right now I have blank screen on the right and left side of the monitor.

A:
Click “Full screen” button

and

Options | Appearance | Scaling options


Q:
What I am looking for is a program that lets me view up to 4 images on screen at once.

A:
You can use:
Options
SlideShow tab
Images per slide = Multiple
Click settings button -> 2x2
OK
OK


Q:
I just purchase "Able Photo Slide show" , need to use option "panorama" and "Zoom" in my output but no effect in the output please advise how to set and implement this option or give some sample.

A:
Please use

Options | Panorama and Zoom tab


Q:
I have been trying for hours to connect to my network drive folder with no success. I have even contacted my IT department to help with no success.

A:
Try to map your network drive:

https://www.itg.ias.edu/content/map-network-drive-windows




ABLE FAX TIF VIEW

Q:
The attached .dcx file opens correctly in kodakimg, irfanview and 32bit fax.
Can you please help re opening correctly with Able FAx

A:
Use the menu items
File | User settings | View tab | Auto Adjust DPI = Switch off

File | Open ...


Q:
When opening a fax received as a letter size, it is displayed at only one half height.
How do I get it to display as it was received?

A:
File | User settings ...| View | Initial zoom = Best fit (or Full size)


Q:
When I open certain pictures in TIF format the picture appears dark (like a negative), how do I solve it?

A:
File | Open
Tools | Negative images


Q:
Printing tif images from Able fax tif view is very slow is there a way to speed this up?

A:
You can use the Fast Print check box on the Print dialog box.


Q:

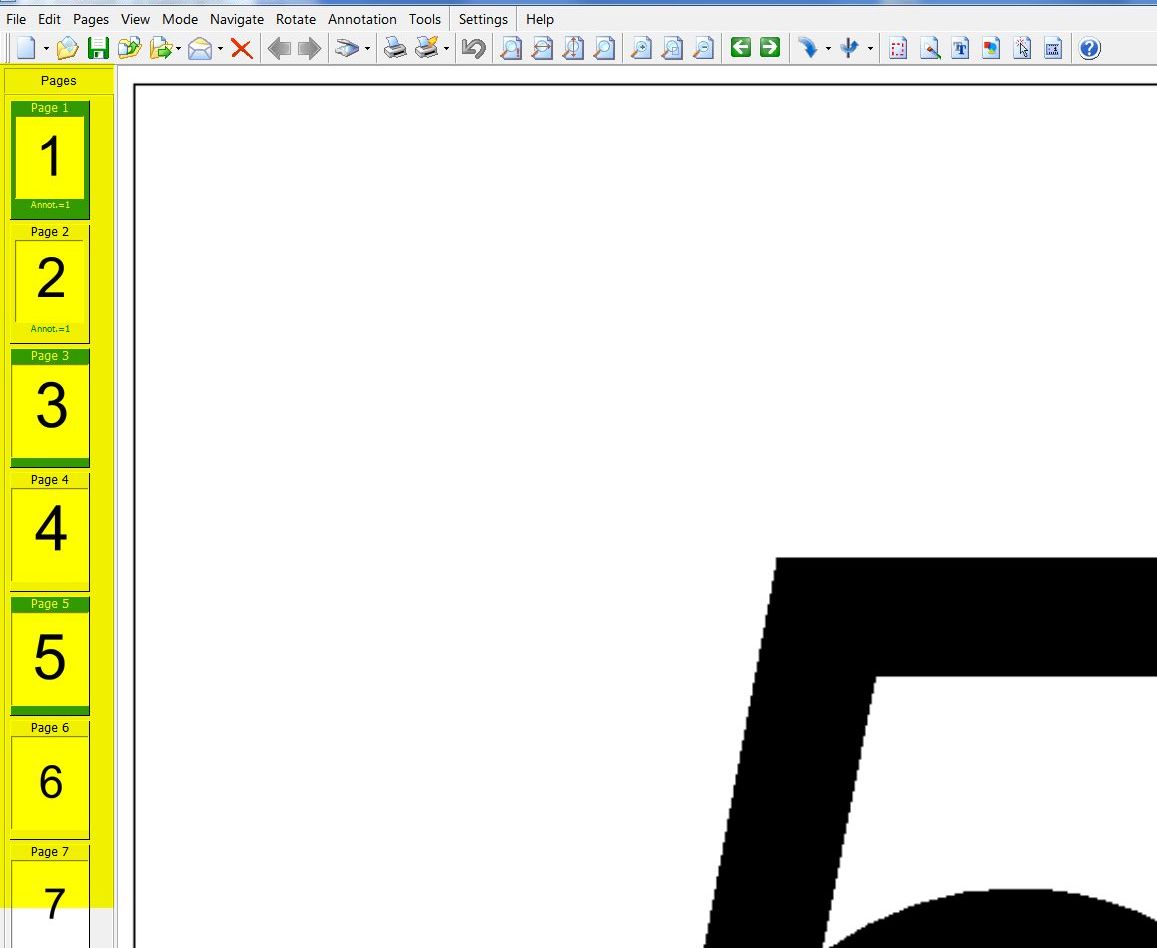

If I open a tiff image with multiple pages, how can I extract single pages from it to make a separate image of it?

A:
Select required pages or use <Ctrl+A> to select all pages
File | Save Pages as
Type file name
"Save selected pages" dialog
Save to separate files
OK


Q:
We are still having problems scanning.

A:

Try to scan using our program and send please scanlog.txt file from the program folder.


Q:
Can Able Fax Tif view program combine two multi-pages tif files into one file?

A:
File | Open (first file)
Pages | Insert All Pages from file (or Append All Pages from file) and select second file
File | Save as

or File | Merge


Q:
When converting a 75-page Tif file to a pdf file, the size change from 12 MB to over 256 MB.
Is there a way to control the size of conversion?

A
:
File | Save as | Advanced | Compression


Q:
Will "ABLE FAX TIF VIEW for Windows" allow me to edit and enter text (ex. enter Name and date) on the TIF attachment in an email before forwarding.

A
:
Yes. Use the Annotation for the text inserting.


Q: When text is inserted I would like to be able to edit it afterwards as text- is this possible?

A: You can use "Annotations" mode

Mode | Annotation

In this mode you can add "Text" object or "Memo" (multi-line text) object as a vector object. You can edit, move, resize this object and change other parameters.

After editing you can combine your vector objects with background.

Annotations | Combine with background


Q: Is it possible to rotate text?

A: Yes

1) Mode | Text

Type your text

Angle = ...

Insert

OR

2) Mode | Annotation

Font | Angle = ...

Click "Text" button on toolbar


Q: Is it possible to rotate annotations after insertion?

A: Yes

Select your text annotation
Font | Angle = ... (on toolbar)

Program allows to change an angle for TEXT object only (not for MEMO object)


Q: The ability to select text/annotation and move it around

A: Mode | Annotations

Select text annotation (and other annotations)
Use SHIFT to select several annotations
Move selected annotations (click central grip, hold, move)


Q: Another thing we would find useful would be to zoom in and out with the scroll wheel on the mouse.

A: Program has this feature.

Settings | User settings | View tab
Mouse Wheel
Action = Zoom


Q:
I am sorry to report that we are experiencing problems with the images I sent you.
They are using very high memory resources.

A
:
Try to switch off the check box
File | User settings | View | Image caching


Q:
when annotating a fax with text, how do i enter multiple lines in text box. ie wrapping of entered text

A
:
Try to use the Memo object from toolbar or menu.


Q:
It can not save a single page when I open a multi page file?

A
:
Select required pages or use <Ctrl+A> to select all pages
File | Save Pages as
Type file name and select file type
"Save selected pages" dialog
Save to separate files
OK


Q:
Do you know of a good way to clean up .tif files?  Mine are a little sloppy and I was looking for a good imaging editor to clean them up.

A
:
Tools | Remove noise
or
Tools | Remove Isolated Pixels


Q:
Need a batch converter, not a standalone viewer

A
:
See the Able Graphic Manager (www.graphicregion.com/graphman.zip)
File | Batch Convert ...


Q:
I couldn't rotate pages except by 90, 180 or 360 degrees.

A:
Tools | Effects | Rotate


Q:
As well another feature we would like is the ability to email the tiff without having to save it to disk.

A:
File | Send as E-mail


Q:
When trying to email a file opened by Able Fax Tif View, my default email application wont open and New email window to send this file, do you know what could be the cause of this.

A:
Settings | User settings | View 2 tab
E-mail sending


Q:
I have one file composed of 39 .tif files all less than 125KB, the combined file is 550+MB, why?

A:
Probably you have saved the resulting file without compression.
File | Save As | Advanced | Compression (LZW or G3FAX)


Q:
I uninstalled the program Able Fax Tif View 1.4 because ... I couldn't view slideshows

A:
See the Able Photo SlideShow program
www.graphicregion.com/photoslideshow.zip


Q:
we changed copiers and the new one will not work with the program

A:
File | User settings | Acquire | Problem-solving | Variant1 or Variant2


Q:
It seems a bit difficult to select more than one area from the original fax and put these areas together into a single fax (page).

A:
You can use the SHIFT button to select more than one area.


Q:
Would it be possible to have the ruler annotation tool enhanced to provide measurement in cm and/or inches in addition to pixels? This would allow us to print drawings to scale (with a simple calculation against the scale bar or a dimensioned element) even when they are not scanned from a document that is to scale. It would also allow us to measure features without having to print out the drawings when we know that they were scanned from scale drawings.

A:
File | User settings | Annotation | Measurement unit


Q:
I am receiving 25-50 page Tiff faxes (around 6|such daily). Every 2-3 pages represent information on 1 individual of a specific group. I will be saving the pages on each individual in a specific folder. That means that in a month I may end up with 1000s of multiple tiff files, which would make it impossible to find the correct file in case I need to refer back to a particular person's information. What I was thus thinking was that I could "annotate" each page with the individual's name and summary information, when I first open and review the fax. Then, if I had a "Search" function in the software, that could quickly "search" through all the annotations (or index of the same) and locate the correct page or Tiff file, it would make life much simpler for me.

A:
Annotation | Search file
It allows to search a text strings in a TEXT and MEMO objects.


Q:
would it be possible for the annotation icon bar to appear automatically when entering the program rather than having to select and deselect "Annotations" in order for the icons to  appear.

A:
User settings | View tab | Startup mode = Annotation


Q:
The second comment is concerning the size and visibility of the stamp. In Fax Tiff View, it looks OK. In Kodak Imaging (Windows 2000), it looks OK. In Linux and in some other (Windows-based) image viewers, the stamp is not present at all.

A:
The stamps are inserted as vector objects and not all programs allow to view them.
You can combine these objects with a background and can them see in anyone viewer, but can not edit.
Use the menu items
Annotation | Combine with background


Q:
I am using the trial version and cannot combine annotations with the backgrounds or save the annotated drawing.

A
:
To combine annotations with background you can use:

Mode | Annotation

- for selected object - press "Combine selected object with background" button (on toolbar)
- for all objects - press "Combine All annotations with background"

OR you can use settings

Settings | User settings | Annotations tab
Automatic combining with background | At saving = ON


Q:
The only other comment we have had from our operations staff is concerning the annotation. Before we upgraded to Windows XP, we were using Imaging for Windows to "stamp" the documents with a standard text string. This is a more complex to achieve in Able, where it is necessary to load / save / copy and paste the annotations from a different folder from the current one; using a standard stamp is much easier to achieve with one key entry.
This was an option with the old imaging utility which was provided with Windows pre-XP. It might be something you could perhaps look at in future.

A:
Use the menu items
Annotation - Object - Stamp - Modify
for creating or editing
and
Annotation - Object - Stamp - your string ...
for inserting.


Q:
It wouldn't convert cmyk tiff files to cmyk jpg's

A
:
File | Open | Select your CMYK TIFF file
File | Save as | Advanced | Mode = CMYK | Ok


Q:
I need to be able to save individual (not all) pages from within the multipage .tif file as individual .tif files (Ie if I receive a fax with 1 attachment Todayfax.tif, I might need to save only pages 3, 5 and 9 of 10 total pages).

A
:
Select required pages or use <Ctrl+A> to select all pages
File | Save Pages as
Type file name
"Save selected pages" dialog
Save to separate files
OK


Q:
Is is possible to implement a little function to your viewer - we need a tiff-viewer for sap.
One important thing is to start the viewer with a list (ascii-list with one filename per line).
After opening the list, you can navigate in the files (list) like in a multipage tif.

A
:
View | Files list
and
File | Files list | Load


Q:
I would like the annotations  to be saved directly on the document, when the user click on "send via email"

A
:
File | User settings | Annotation tab | Automatic combining...


Q:
Users sometimes want to crop an image to a particular size. Displaying the current selected area height/width in the user's default units (pixels/inches/cm) would make this possible.

A
:
User settings | Annotation | Measurement unit


Q:
I would like to buy a program that automatically converts the multipage tif files I scanned in greyscale and high resolution (several hundreds,) into b/w low/medium resolution multipage tif files.

A
:
File | Batch process


Q:
I would like to use your application in a batch mode to open Tiff files in a directory and  automatically perform skew correction to each file and then save the corrected image back to
disk.

A
:
File | Batch process ...
Add files
Action tab
Add | Descewing


Q:
When You are using any tool (text, memo, pen ...) after using it, the program is still staying on it, so if you want to move it, you have first to click to the "arrow" tool...
And the reflex by almost all user is to click directly to the created object to move it, what  creates a second object  (because the program is still on that tool)...

A
:
File | User settings | Annotation tab | Insert mode = Single


Q:
Is there any way I can have the drawing toolbar to always show ?
Right now it only shows when I click the icon draw.

A
:
File | User settings | View tab | Startup mode = Draw


Q:
I need batch printing

A
:
File | Batch process
Add files ...
Save as type = (PRN) Printer
Advanced (if requested)
Start


Q:
If you could suggest a way to auto-crop the black borders, this would be very useful.

A
:
File | User settings | Acquire | Auto Border Detection


Q:
... will not let me select a portion of the file and export to print.

A
:
Press the "Select a part of the image" button on toolbar.
Select requested portion.
File | Print | Print the selected area | Ok


Q:
How to operate the "stamp" function?

A
:
You can set up it before using
Annotation | Object | Stamp | Modify | Image tab | New | Select requested file |
(you can change the stamp name in the ImageName field) |
Ok

Using:
File | Open
Press annotation button on toolbar
Press Stamp button on toolbar and select your created stamp
Click on the page to insert or select region (rectangle)
You can resize and move stamp after inserting


Q:
What is the last step "At end of the work, you can use the "Combine annotation with background"?

A
:
Annotations can be saved as a separate annotation layers, or they can be saved as a permanent part of an image (after 'Combine with Background').

To save annotations as a permanent part of an image
Under the 'Annotation' menu select the 'Combine with Background' menu item.
PLEASE NOTE, once the annotation objects are combined with background,
they become part of the background layer and can no longer be edited as individual objects.


Q:
Is there any way to get the program to show the page number it is currently printing?

A
:
File | Print | Captions ...


Q:
How to view all pictures at a time?

A
:
View | Files list


Q:
Is it possible to have the Polyline tool stay selected after pressing the escape key?
We would like to annotate in freehand without having to click on the tool icon each time we want to move to a new word or document section.

A
:
File | User settings | Annotation tab | Insert mode = Group


Q:
We're generating various financial reports and kermiting them to the PC (Win XPs) in either .txt or .csv formats. These need to be converted to TIFFs so they can be accessed properly by the archive/retrieval software.

A
:
File | Import Text ...


Q:
I want to scan each page of the document, split the image's left and right side into individual pages, rotate and resize each page.

A
:
Pages | Split page ...


Q:
If there is any button letting me to save the G4FAX settings as default?

A
:
File | User settings | Saving


Q:
I am using Able Fax Tif View on an XP machine. I have two monitors. I would like Able to open up on my left screen (second monitor). No matter how many times I drag it over from the first monitor (main screen) it just will not open up there. Is there anything I can do to get this to work?

A:
File | User settings | View tab | Window state = Normal

Move program window to requested place or use

File | User settings | View tab | Window Size


Q:
I would like to be able to insert a tif image of a signature in another tif document, and I thought the transparent color function would be great for doing this.

A:
You can use an annotation stamp for that.

To create signature (stamp).
Mode | Annotation
Annotation | Object | Stamp | Modify
Image tab | Press NEW button
Select requested file for a signature.
Select name for this signature.
Mark "White transparent" | OK

To use:
Press Stamp button
Select requested stamp (signature) from a list
or
Annotation | Object | Stamp

Press "Combine annotation with background" before saving.


Q:
My customer recently purchased your program and asked me to create a silent install package for a rollout on multiple computers. Please provide some information about silent setup switches.

A:
You can use:

faxtifview.exe /COMPONENTS="main" /VERYSILENT


Q: Can this software be installed on a terminal server?

I am trying to install the evaluation version on a 2003 Terminal Server that is a VMware virtual.

The installation completed without error but if I try to open the program I get the following

An attempt to use a virtual PC has been detected.

Is the software compatible with virtualization or is this a restriction due to the hardware not being unique or you activation?

A:
Only Site and World-wide license allow to start the program on virtual machines.

You can test this version:
www.graphicregion.com/faxtifview_3.2.exe


Q: Can I save my tiffs in to the new PDF\a?

A:
Not specifically, but it is uses the widely supported 1.4 format (as with PDF/A-1) and does not use any font or object linking (as with all PDF/A types).


Q: When installing the Graphic Region TIFF printer, it comes back with this error " AddMonitor() failed.
Q: It failed when it tried to install the 32-bit version of the printer driver because it couldn't find UNIDRV.DLL.

A:

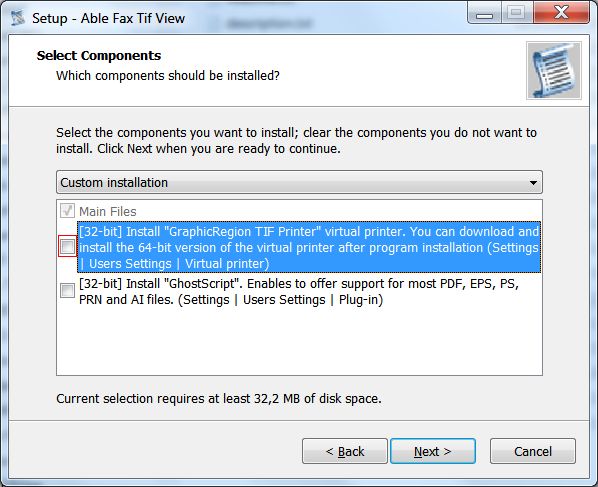

Installer contains 32-bit version of Virtual Printer only.
If you have 64-bit operating system, don't select this item (Virtual Printer) at installing main program.

You can use this link:

www.graphicregion.com/aftv_tif_printer_setup_x64.exe

Download and install 64-bit version of Virtual TIFF Printer separately.


Q: I have a 100 page tiff and I only want to print 7 of the pages. When I go to the print dialog it does not give me the option to specify page numbers to print. Only has the option to print selected pages. How do I select multiple pages.

A:
Select necessary pages in the "Pages" list (you can use Ctrl and Shift)

See example

File | Print

What woluld you like to print = Selected pages


Q: How to split pages and save them as separate .tiff pages without having to delete the other pages to save as .tiff page.

A:
Select necessary pages in the "Pages" list (you can use Ctrl and Shift)
Pages | Split pages

Select necessary (splitted) pages in the "Pages" list
File | Save pages as ...


Q: I have oil and gas logging plot. Plot tiff file has multi pages. Can I convert one multi pages tiff to one continuous tiff file?

A:
File | Open | your file

Select all pages in the pages list (use Ctrl + A)

Pages | Combine pages | Vertically

Delete original pages = ON

OK


Q: I've installed AFTV program for a month free trial and every time I open PDF file with it, a blue question mark shows on the screen. Could you tell me what's wrong?

A:
To open PDF files, you need to install GhostScript plug-in.

Settings | User settings | Plug-ins

Step 1-2-3 (download, install, autosearch)


Q: We recently noticed that program occasionally uses G3Fax compression of some of the pages while other pages in the same document is G4Fax. Is there anything we can do to fix this issue?

A:
Settings | User settings | Saving tab
TIFF Compression
Use default = On
Black-white = G4fax


Q: The font color for text annotations doesn't match the font dialog. Screenshot attached. It seems that the Pen Color controls the font color.

A:
Yes
To change the text color you need to use "Pen Color".


Q: I open the file, and select [View] [Fit Page Height]. With the selection tool active, this results in a zoom level of 11%. Selecting another page (by clicking on it in the left document tree) switches the zoom level back to what is apparently the default of 26% which fits the page width. The zoom level is also reset if I manually select a percentage and then select a different page. The zoom level should not be reset when selecting a different page.

A:
Settings | User settings | View tab
Initial view
You can choose "Last used" item
For each page = OFF


Q: Where can I learn more about these different compression algorithms so I
know which one is best for me to use?

A:
https://en.wikipedia.org/wiki/Tagged_Image_File_Format

TIFF Compression Tag


Q: Does Able Fax Tif View have and OCR feature that well let me convert text tif files to text files. I get some printed correspondence from clients that I scan to tif, then to OCR text, then import them as csv into Excel. Then I can sort their info as needed. My OCR software is 7 years old and was on a NTcomputer removed from my office. Am I taking to many steps or does Able have an OCR software for me.

A:
Program has this feature. You can use:

Tools | Text recognition (OCR) | Start | Save to file


Q: Able Fax Tif View (V 3.7.)

Is there a way to make an image of B&W text that is too dark a lighter weight?
I tried Color Adjust> Sharpen, but it doesn't seem to make improvement.
Any suggestions?

A:
Try to use

Tools | Effects | User filter = High Pass


Q: Can the Able Batch Converter save as progressive jpeg?

A:
Yes

Result tab
Output format = JPG
Advanced (button)
Progressive = ON


Q:

I had a question about rotating text. In version 3.7 I had an issue where text that was initially entered, was manually rotated to some arbitrary angle; however, the text would be cut off at the end as the rotation was increased. I downloaded the latest version 3.8 and noticed the same behavior. I have included a screen capture of the text after it was rotated.

I would like to know if there is some type of setting that needs to be made to fix this.

A:
Try to use

Annotation | Object | Text auto size = OFF


Q:
In many image editing, holding down the Shift key while drawing a line or moving an object causes the line or movement to be constrained to horizontal or vertical movement. This does not appear to work in ATF. Is there a way to force a line draw or move to be only vertical or horizontal in ATF?

A:
You can use the "CTRL" key in the "DRAW" mode.


Q:
How can I change the ruler display settings from pixels to inches?

A:
Settings | User settings
View 2 tab
Ruler | Unit


Q:
Is there any way to use Tiff Editor to auto detect and delete blank pages?

A:
You can use:

Pages | Delete All Blank pages ...


Q:
I was curious if there is a way we can increase the zoom size for thumbnails for users?

A:
Pages list:

Settings | User settings | View tab
Thumbnail size

Files list:

See "Files list - Settings" (below the list)
Thumbnails size


Q:
Is there a way to take a picture and add some sort of filter to create a watermark? I want to create something similar to what Microsoft Word does when adding a faded watermark in the background of a document.

A:
You can use

Mode | Annotation
"Image" button

Dialog window "Insert Image object"
File ...
Use transparent background = ON
Color ...
Transparency ...
OK

Insert your transparent image
You can move and resize it

After all changes you need to use
"Combine annotations with background" button


Q:
I want to take multiple PDF files, convert them to TIFF, but keep the same name of each file that it had as a PDF. Is that possible?

A:
File | Batch Process

Add files (your PDF files)

Save to folder = ...

Save as type = TIFF

Start


Q:
I have about 20,000 multitiff files, I wanted to switch to single tiff, keeping the original file name, incremented the 1,2,3 .. with your program is it possible to do that?

I had to test and I only managed to make file to file, what I wanted was that it be in batch or automatic, each multifile that he created single tiff, page by page. it's possible?

A:
Use "Advanced TIFF Editor Plus"

https://www.tiffedit.com/advtiffeditorplus_setup.exe

and

File | Batch Process

Add Files (or Add Folders)

Save as type = TIFF

Click "Multipage files" - "Save to separate files"

Start


Q:
Can you direct me to the instructions to combine tiff files into a single file. I have perhaps 800 files each of which has 1 to 300 "pages" of tiff images. I want to create a pdf for each of the file. Would you please direct me to the instructions on how to combine multiple tiff images into a single image with multiple pages?

A:
https://www.graphicregion.com/blog/archives/212


Q:
It is difficult to select every time to highlight the tiff in Annotation objects. Is there any settings to make my Annotation tool as default as highlighter until I changed the tool? If you provide me the suggestion, my working time will reduce by avoiding every time click of highlighter for marking

A:
1)
Annotation mode as default mode:

Settings | User settings | View tab
Startup mode = Annotation

2)
Settings | User settings | Annotation
Insert mode = Group


Q:
I am unable to get the Able Fax Tif View to be the default program for any document types. Can you help me with this?

The Able Fax Tif View doesn't even show up in the possible programs to select as the default.

A:
Settings | Image associations


Q:
How can I make the highlight annotation tool persist? The problem is that each time I draw a highlight the highlight tool becomes deselected and the select annotation arrow becomes active.

A:
Settings | User settings | Annotation
Insert mode = Group


Q:
A customers of mine would use TE to modify tiffs in a concurrent environment, tiffs are shared on a server (win server or cifs shares on nas). I made some tests and I noticed that if a tiff is opened on a pc, any other user can open the same tiff and modify it. Is it possible to avoid it, locking the file on the first opening and allowing only a readonly access to subsequent openings, like office or other programs do?

A:
Settings | User settings | Edit tab
Lock the file at editing


Q:
How can I deskew automatically *all* pages at once?

A:
1)
Ctrl + A
to select all pages

2)
Tools | Deskewing
or
Tools | Deskewing Fine


Q:
I recently purchase the Able Fax Tif View and wanted to know if this software has a date stamp option.

A:
Yes

Mode | Annotation
Date/Time button on toolbar
...
Annotation | Combine with background


Q:
Thanks for the update,
But is there a way that I can add a date stamp to multiple images at once with out having to click page by page?

A:
Select required pages in the Pages list (or use Ctrl + A to select all pages)
Insert Date/Time stamp (use previous instruction)


Q:
I have some pages whose white borders are too small (or too large).
I want to reduce (or expand) the image (printed content) of the page
without changing the resolution or the actual page size.

A:
You can use:
Tools | Add-Remove Margins


Q:
I cannot view multiple TIF files on different windows and it is difficult and inconvenient to view them one by one on a single window.

A:
You can use:

Settings | User settings | View tab
Allow only one copy = OFF
OK


Q:
Is there a way to increase the size of the thumbnails in this program?

A:
Thumbnails for the pages list

Settings | Users settings | View tab
Thumbnail size

Thumbnails for the files list

Files list - Settings


Q:
I know there is a way to make the program keep the last annotation object to be kept.
e.g. if you select the “Box” item it will stay on box until you choose another item.
Where do I find this, I’ve been looking in Settings>User Settings.

A:
Settings | User Settings

Annotations tab
Insert mode


Q:
How can I save pdf file (contract) and lower the size of the file? It is just black and width pdf.

A:
Settings | User settings

Plug-ins tab
Step 3
Color mode = Black-and-white

Saving tab
PDF compression
Choose necessary compression

File | Open
...
File | Save as

Q:
The problem is when im pasting a signature and initials on each page
the file grows and the black and white dosent reduce it much

A:
Probably this file isn't black-and-white.

Try to do after all your actions:

Tools | Convert | To Black-and-white
File | Save as


Q:
 ... Especially using the text tool
If there is an additional option/way to insert text in pdf for example.

A:
In this case you can use the Annotations mode.

Mode | Annotations
Annotations | Object | Text
or
Annotations | Object | Memo (multi-line text)

or use the Text or Memo buttons on toolbar.

After inserting you can edit, move and resize your text.

After finishing click "Combine annotations with background" button.


Q:
It’s will be great if you add the option to combine and merge multiple files into one file.

A:
Program has this feature.

https://www.graphicregion.com/blog/archives/212


Q:
I cant use virtual printer of able fax tif  from pdf file in order to edit the file .
the tif file doesnt appear.

A:
You don't need to use TIFF printer to work with PDF.
"Able Fax Tif View" program allows to open PDF files and save them to TIFF.

Settings | User settings | Plugins tab
Step 1-2-3
OK

File | Open | your PDF file
File | Save as | TIFF file


Q:
Able Fax Tiff View program. Is there a way to restore to factory settings

A:
Try to do:

1) Run the Registry Editor: Start->Run, type "regedit", click OK;
2) Go to the branch "HKEY_CURRENT_USER";
3) Then go to "SOFTWARE\GraphicRegion.com\Able Fax Tif View".
4) Delete this branch.


Q:
My question is; if I have compression on with scanning to tiff and again when processing to searchable pdf, is it perhaps unnecessary to have compression on in ATE? Perhaps it is confusing for the software to have so many compression times or perhaps it even degrades the final image???

A:
dffgdf compression are you using?
If it's g3fax or g4fax, then it's lossless compression.


Q:
As for zoom filters ... I am wondering what they are all about ... so many!

A:
These are different smoothing algorithms.

If you need the best quality we suggest: Hermite, Bell, BSpline, Lanczos3, Mitchell, Nearest, Bilinear, Bicubic.

If you need speed we suggest: Triangle, Linear, FastLinear.

FastLinear filter is optimal in terms of quality and speed.
You can choose "best quality" filter, but it will work slower.


Q:
Before buying this product, I would like to know how to enter text correctly. Currently whenever text is entered as an annotation, there is a solid color background to it of varying colors. I want to know how to have no background, just the text. This is for annotating maps)

A:
You can change (see toolbar)

Pen Color - Style - Width
Pen Style = Clear

Brush Color - Style
Brush Style = Clear


Q:
Before I purchase this, I need to know how to change the scale accurately.

A:
You can use
View | Zoom In, Zoom Out and Zoom Level

You can also change the scale with the mouse:

Settings | User settings | View tab
Mouse wheel
Action = Zoom


Q:
I´m testing "Able Fax Tif View" program for our customer.
I don´t understand, why first TIF picture offer only two colours (Black and White) and second picture offer more colours. Customer needs use object "Line" with red colour.
Same problem with Text tools.

A:
The number of colors depends on the picture itself.
For black and white, only two colors are offered (black and white).
You can convert black and white to color.
In this case, you can use any color.

Mode | View
Tools | Convert | To 24 bit
Mode | Draw

Q:
How to find out the number of colors in your file ...

A:
File | Info
No. of colors

















SUBSCRIBE

to our free
monthly newsletter
to get discount


Follow us:

Follow us @Graphicregion  Follow us on facebook

Follow us on youtube




  Copyright © 1997-2024 GraphicRegion.com. All rights reserved.
  Terms of use    Privacy statement    Links    Site map
  We are using Two Pilots virtual printer
