Users Settings

Top  Previous  Next

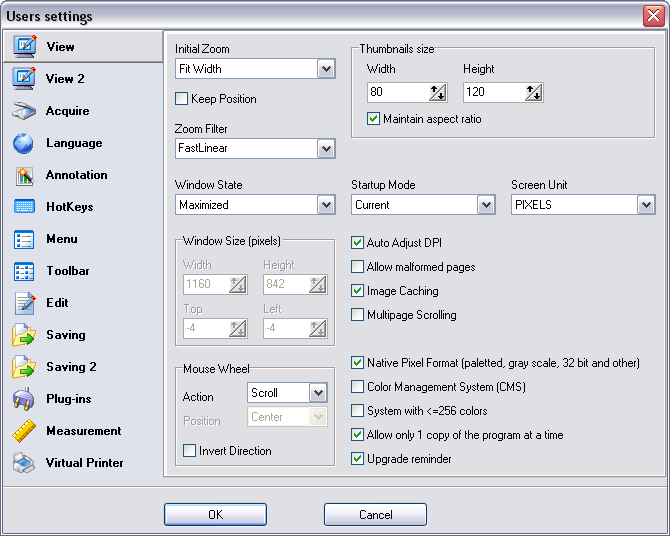

View tab





Initial zoom

Fit Height resizes the image (zoom) to fit the height of the program window.

FitToWidth resizes the image (zoom) to fit the width of the program window.

Best Fit returns the best zoom value to stretch the image in the program.



Zoom Filter

ZoomFilter specifies the filter to apply in zoom-in operations.

The fastest way to zoom a picture is to set ZoomFilter to None.



If you need the best quality we suggest: Hermite, Bell, BSpline, Lanczos3, Mitchell, Nearest, Bilinear, Bicubic.

If you need speed we suggest: Triangle, Linear, FastLinear.

For projects (white on black or black on white) we suggest: ProjectBW and ProjectWB.



Window State

Represents how the form appears on the screen.



Screen units specifies the measurement unit used for displaying image.



Window Size

Specifies the height and width (in pixels) of the form.



Thumbnails Size

Width and Height is the width and height of the thumbnail.



Startup Mode allows to set the program mode at opening the file and at starting.

Available values: View, Select, Eraser, Text, Draw, Annotation, Current.



When Auto Adjust DPI is checked and last loaded/scanned image has horizontal DPI (dot per inch) not equal to vertical DPI, program resizes the image making DPIX=DPIY.



Image Caching

ImageCaching allows you to speed up thumbnails painting, saving each drawn image to a cache. This is enabled by default.



You can change a Mouse Wheel Actions (scrolling, zooming).



Mouse Wheel Position

If Mouse Wheel Action is Zoom, Wheel Position specifies where the zoom acts.

The default (Center) is the center of the control, otherwise (Mouse) zooms from the mouse's position.



Mouse Wheel Invert Direction inverts wheel direction.



Color Management System (CMS) allows to render the image with the original colors.



Native Pixel Format

By setting this property to True, you disable the conversion of paletted images, gray scale and all other formats to 24 bit or 1 bit.

By default, program converts all paletted, gray scale images and other formats to 24 bit (true color). Only black/white images are stored in the original format with 1 bit per pixel.

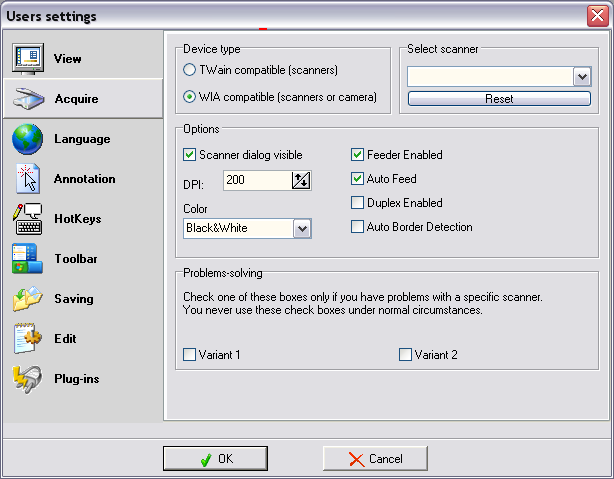

Acquire tab





You can select a device type for acquiring.



If Scanner dialog visible is checked, the scanner user interface is enabled when Acquire command is called.

DPI is DPI (Dots per Inch) in the X-axis.

Color is the type of pixel data that a scanner is capable of acquiring.

Valid values are Black&white, Gray scale and full RGB (24 bit).

Feeder Enabled enables the feed loader mechanism when present.  Use this property to disable the feed loader.

If Auto Feed is checked, the scanner will automatically feed the next page from the document feeder.

If Duplex Enabled is checked, the scanner scans both sides of a paper; otherwise, the scanner will scan only one side.

Use this property to enable/disable duplex mode.

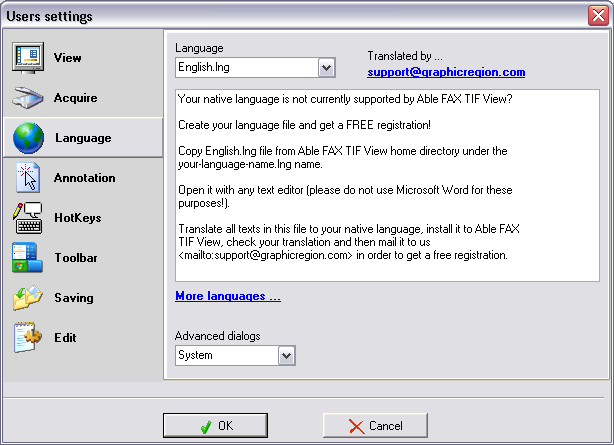

Language tab

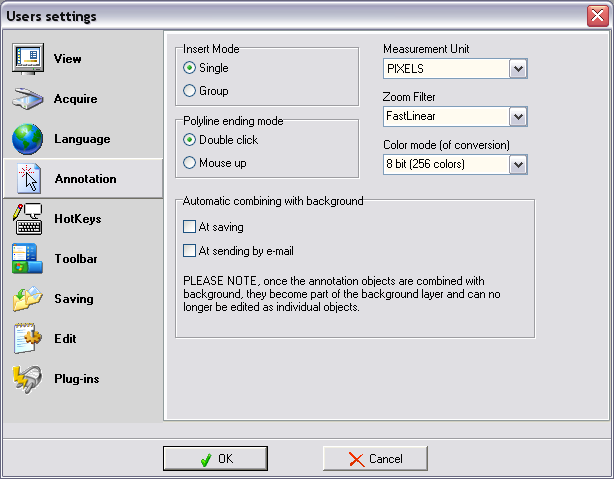

Annotation tab





Polyline Ending Mode specifies how terminate a polyline.



Measurement Unit

Measurement Unit specifies the measurement unit used for displaying measurement tasks (e.g. Ruler tool in the Annotation mode).



Zoom Filter

ZoomFilter specifies the filter to apply in zoom-in operations for all edit modes.

The fastest way to zoom a picture is to set ZoomFilter to None.



If you need the best quality we suggest: Hermite, Bell, BSpline, Lanczos3, Mitchell, Nearest, Bilinear, Bicubic.

If you need speed we suggest: Triangle, Linear, FastLinear.

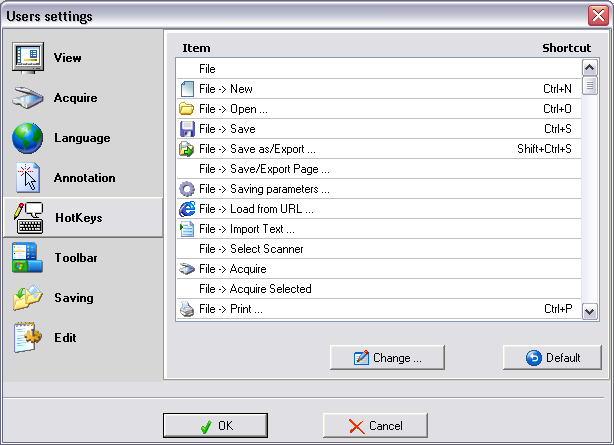

HotKeys Tab

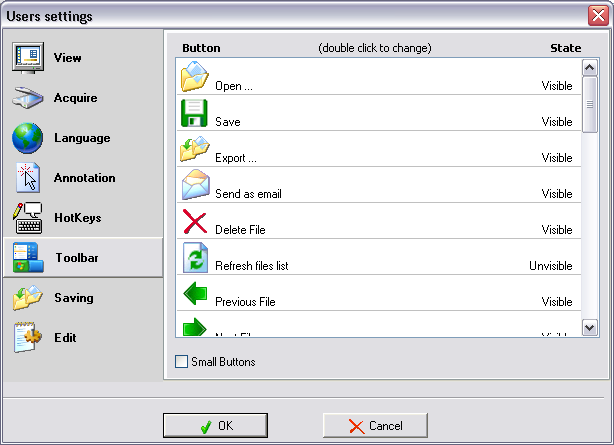

Toolbar Tab

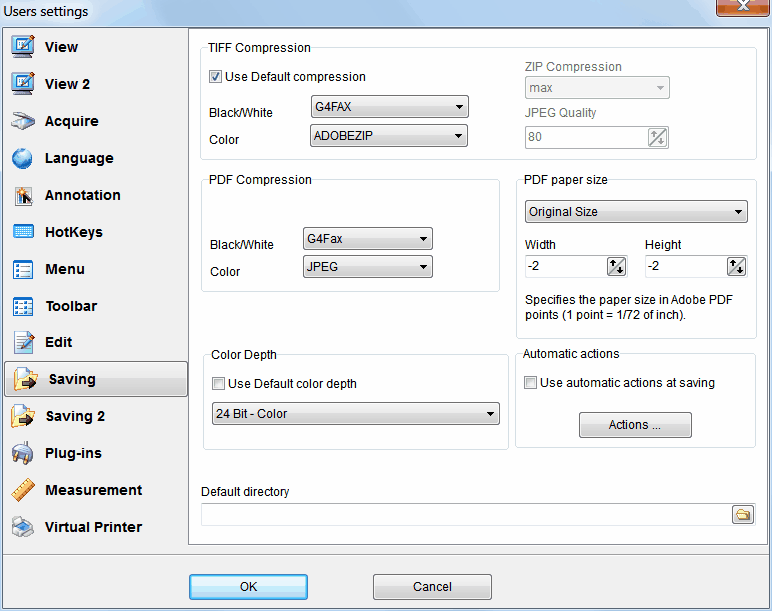

Saving Tab





Default directory for saving.



TIFF Compression



UNCOMPRESSED

Uncompressed TIFF. Supports all pixel formats and alpha channel.

CCITT1D

Bilevel Huffman compression. Only black/white images, no alpha channel.

G3FAX1D

Bilevel Group 3 CCITT compression, monodimensional. Only black/white images, no alpha channel.

G3FAX2D

Bilevel Group 3 CCITT compression, bidimensional. Only black/white images, no alpha channel.

G4FAX

Bilevel Group 4 CCITT compression, bidimensional. Only black/white images, no alpha channel.

LZW

LZW compression. Supports alpha channel.

JPEG

Jpeg compression. Only true color images, no alpha channel.

PACKBITS

RLE compression. Supports alpha channel.

ZIP

ZIP compression (non TIFF standard). No alpha channel.

ADOBEZIP

Adobe ZIP compression (non TIFF standard). No alpha channel.



Automatic actions at saving



Stamp

Change Resolution (DPI)

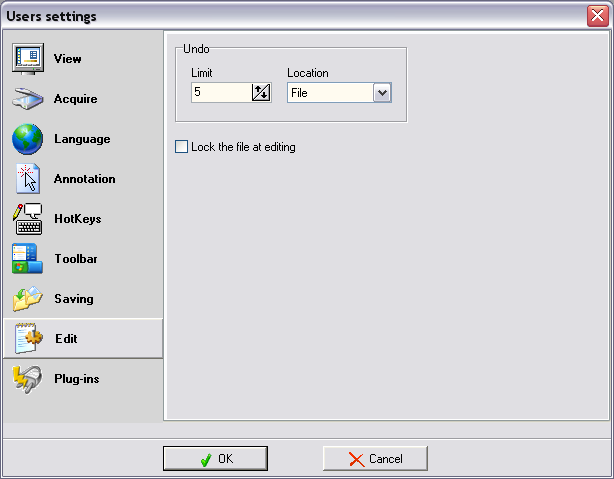

Edit tab





Undo Limit specifies how many images can be saved.

Undo Location specifies where program saves "Undo" images.

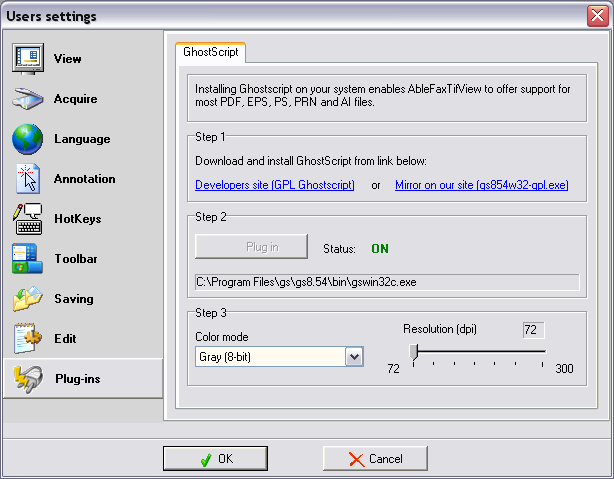

Plug-ins tab
