Page manipulations

Top  Previous  Next

Use the Pages list and the Edit and Pages menu items.



Edit menu





Undo

Undo restores the active image as it was before the last change was made.



Cut

This command cuts a selected page to the clipboard.



Copy

This command copies selected page to the clipboard.



Paste

Pastes the current selection or bitmap from the clipboard into the active image.

You can move the inserted selection and resize it using grips.



Paste as Page

Pastes the clipboard image as a new image into a new Page.

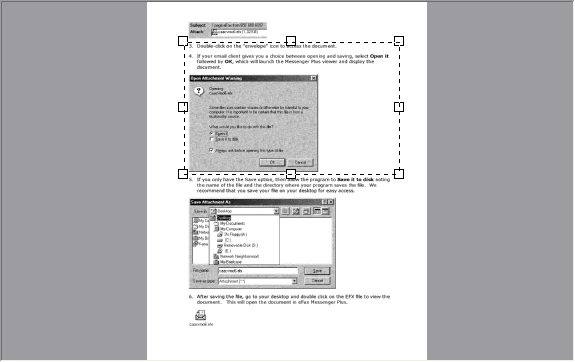

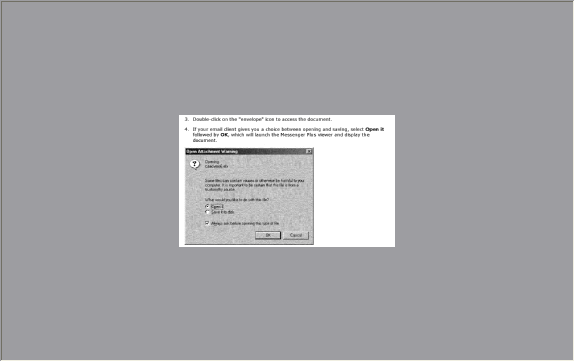

Crop

Crop cuts the selected region and copies it as a current image, without use clipboard.

If checked, the user can click and drag to specify an area of the image to crop.

Press the Select Region button, select a region (sizeable and moveable) and use the Crop menu item from the Edit menu.

"Crop" tool allows to work with all selection methods (rectangle, circle, polygon, lasso, magic wand).

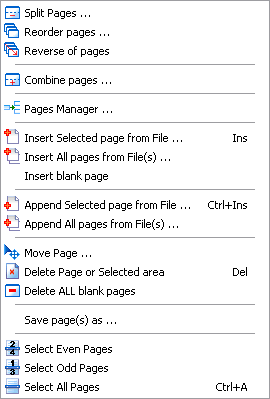

Pages menu

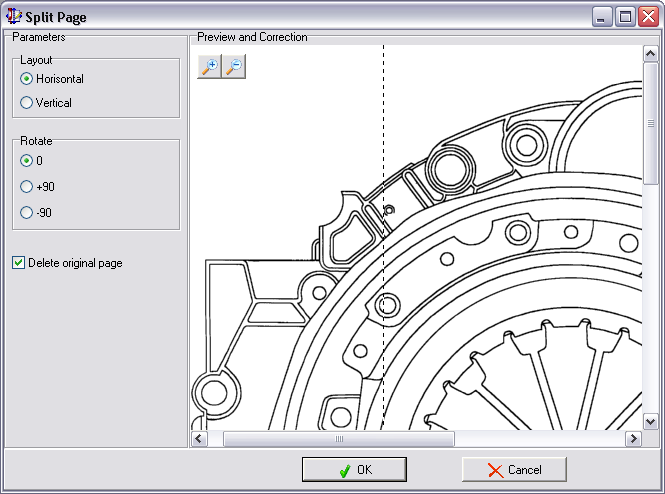

Split Page ...

You can split the selected pages horizontally or vertically.

Click on the page preview and move splitter.

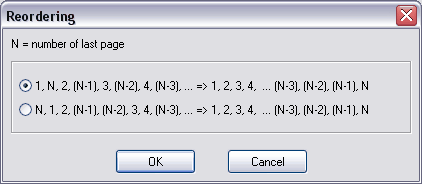

Reordering of the pages (unbooklet)







Insert Selected Page from File ...        [ Ins ]

Selected page from file can be added to the current position of the opened file.



Insert All pages from File(s)

Multipage Image file(s) can be added from the current position of the opened file.



Append Selected Page from File ...        [ Ctrl + Ins ]

Selected page from file can be added to the last position of the opened file.



Append All pages from File(s)

Multipage Image files can be added from the last position of the opened file.



Move Page...

Moves an image from the current position to destination one.





Program allows to move pages by using drag-and-drop in the pages list.



Delete Page or Selected area

Deletes the selected page or Selected area.



Delete All blank pages

There is ability to set the "Threshold" value for the command.







You can select a rectangular area. Click and move mouse to select the rectangle.

SHIFT key allows selection of multiple regions. Simultaneously pressing ALT causes the selection to maintain its aspect ratio.
